Airy w/ Accessory Kit
Compact, high resolution hemispherical LiDAR with built-in IMU
$1,158.00
Customize
Share :
Product Details

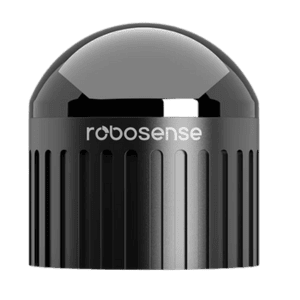

Compact in size, comparable to a ping-pong ball, it delivers an ultra-wide hemispherical FOV with 360° horizontal and 90° vertical coverage, encompassing a 60-meter radius range. With 1.72 million points per second and 1cm@1σ range precision, Airy provides real-time detection of object size, contour, and distance. Its well-structured, algorithm-friendly point clouds enable exceptional performance in obstacle avoidance, mapping, and navigation tasks.
Airy supports a wide variety of robots operating seamlessly in diverse lighting conditions, enabling all-weather continuous operations and advancing the intelligent application of robots across all scenarios.
# of Lines:96
Laser Wavelength:940nm
Laser Safety: Class 1 Eye Safety
Range: 60m(30m@10% NIST)
Blind Spot: ≤0.1m
Range Precision（Typical): 1.5cm
Horizontal FoV: 360°
Vertical FoV: 90°
Horizontal Angular Resolution: 0.4°
Vertical Angular Resolution: 0.947°
Frame Rate: 10Hz
Rotation Speed: 600rpm
Points Per Second(Single Return Mode): ~860,000 pts/s
Points Per Second(Dual Return Mode): ~1,720,000 pts/s
Ethernet Connection: 100Base-TX
Output: UDP packets over Ethernet
UDP Packet Data: 3D spatial coordinates, reflectivity, timestamp, etc.
Operating Voltage: 9V - 32V
Power Consumption: ≤8W
Weight: 220g±20g
Dimension: Φ60mm * H63 mm
Operating Temperature: -40°C ~ +60°C
Storage Temperature: -40°C~ +85°C
Time Synchronization: $GPRMC with 1PPS，PTP&gPTP
Ingress Protection: IP67 / IP6K9K
