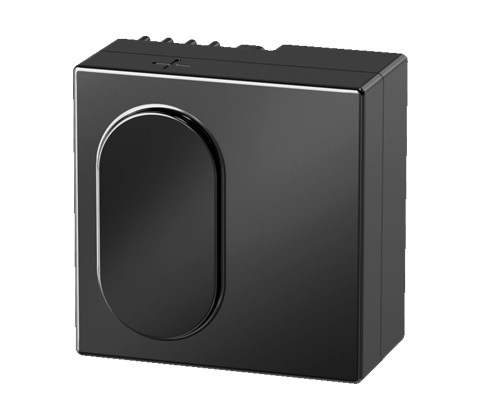

Modular design offers compact size, low power consumption, and lightweight advantages.
-Ultra-wide-angle and high-precision design while maintaining a standard 30m range measurement
capability, meeting diverse requirements across various scenarios.
-Ultra-small ranging blind spot enables accurate detection of obstacles at extremely close distances.
-Complies with international eye safety Class 1 (IEC-60825) requirements.
Laser Wavelength 940 nm
Detection Range 0.1–50 m
Detection Distance 30m@10% standard reflector
Distance Measurement Accuracy < 2cm @ 1σ
Distance Measurement Accuracy ±3cm
Field of View (H × V) 140° × 100°
Angular Resolution (H × V) 0.55° × 0.52°
Frame Rate 10 FPS
Rated Voltage 9-32V DC
Operating Current 0.45A@12V
Rated Power 6W
Operating Temperature -40°C to 60°C
Safety Protection Rating IP54/IP66
Compliance Certifications IEC 60825-1:2014 Class 1 Eye Safety
Dimensions (H × W × D) without
connectors 39.4mm * 94.4mm * 45mm
Dimensions (H × W × D) with
connectors 39.4mm * 94.4mm * 46mm
Weight 220g
Connector M12 aviation connector
Data Transmission Interface TCP/UDP
Data Output 100BASE-TX
Dot Frequency 49 wpt/s
Point Cloud Data Transfer Rate Single Echo 19.68Mbps, Dual Echo 34.72Mbps Time synchronization Supports hard time sync (1 PPS interface reserved)
Echo Mode Single Echo, Dual Echo
