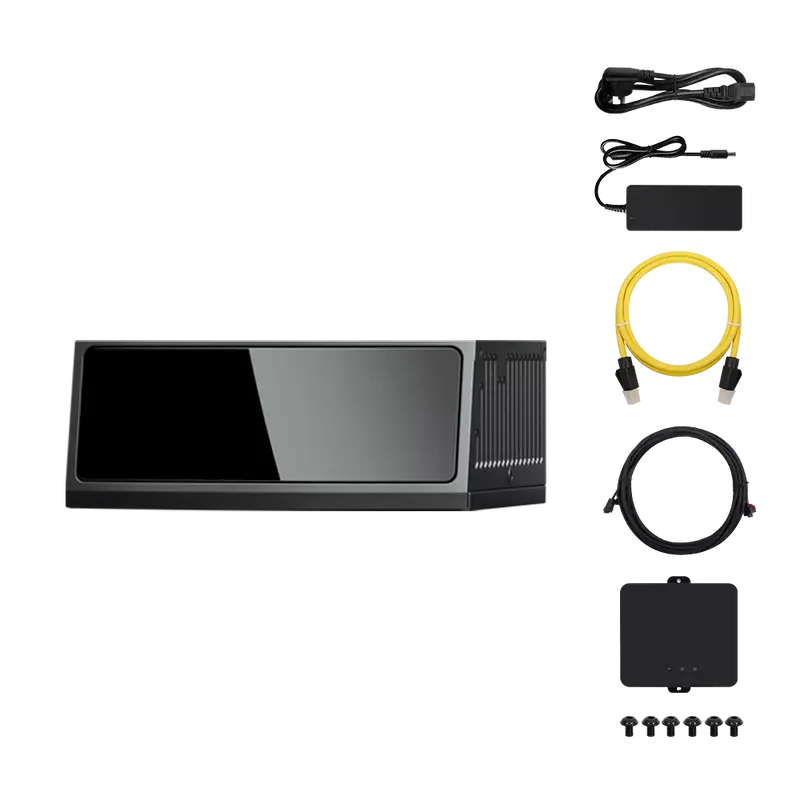

M1 Plus (w/ accessory kit)

# of Lines: Equivalent to 126

Laser Wavelength: 905nm

Laser Safety: Class 1 Eye Safety

Range: 200m(180m@10% NIST)

Blind Spot: ≤0.5m

Range Precision（Typical）: 5cm (1sigma)

Horizontal FoV: 20°

Vertical FoV: 25°

Horizontal Angular Resolution: Average 0.2°

Vertical Angular Resolution: Average 0.2°( ROI Model Average 0.1)°

Frame Rate: 10Hz

Points Per Second(Single Return Mode): 787,500 pts/s

Points Per Second(Dual Return Mode): 1,575,000 pts/s

Ethernet Connection: 1000M Base T1

Output: UDP packets over Ethernet

UDP Packet Data: 3D spatial coordinates, reflectivity, timestamp, etc.

Operating Voltage: 9V - 16V

Power Consumption: 15W

Weight: ~690g（Without Cabling）

Dimension: 111mm（D）x 110mm（W）x 45mm（H）

Operating Temperature: -40°C ~ +85°C

Storage Temperature: -40°C ~ +105°C

Time Synchronization: gPTP

Ingress Protection: IP67、IP6K9K
