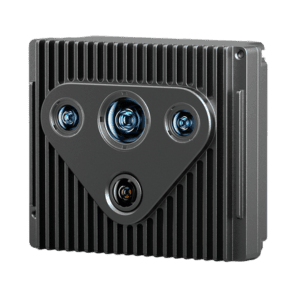

AC1
Short range active camera built for indoor and outdoor robotic applications.
$1,999.00
Customize
Share :
Product Details
AC1 breaks the limits of traditional 3D cameras, offering outstanding performance to fully meet the needs of smart robots in indoor and outdoor obstacle avoidance, mapping, and hand-eye coordination, greatly enhancing efficiency and safety.
Laser Wavelength: 940nm
Laser Safety: Class 1 Eye Safety
Range: 20m@10% NIST
Blind Spot: ≤0.2m
Range Precision（Typical）: 3cm
Dtof Horizontal FoV: 120°
Dtof Vertical FoV: 60°
Dtof Horizontal Angular Resolution: 0.625°
Dtof Vertical Angular Resolution: 0.625°
Dtof Frame Rate: 10Hz
Camera Horizontal FoV: 144°
Camera Vertical FoV: 78°
Camera Resolution: 1920x1080
Camera Frame Rate: 30 Hz
Camera Exposure Mode: Rolling Shutter
Interface: USB 3.2 Gen1
IMU Mode: TDK IIM 42652
Operating Voltage: 12V
Power Consumption: 12W (typical)
Dimension: 135x80x40mm
Operating Temperature: -20°C ~ +60°C
Storage Temperature: -20°C~ +80°C
Ingress Protection: IP54
